Display parameters

LCD Type

TV-TN, TFT LCD

Viewing Angle

TV viewing angle, 70°/70°/40°/30°(L/R/U/D)

Resolution

480×272 pixels (0°/90°/180°/270°)

Color

18-bit 6R6G6B

Active Area (A.A.)

95.04mm (W)×53.86mm (H)

Backlight Mode

LED

Backlight Service Life

>10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

WTC:250nit
WTR:200nit
WN:300nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

2.7

3.2

-

V

Output 0, Iout = 4mA

-

0.1

0.4

V

Input 1

2.4

3.3

5.5

V

Input 0

0

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

200mA

VCC=5V, max backlight

70mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-10℃~60℃(5V @ 60% RH)

Storage Temperature

-20℃~70℃

Conformal Coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

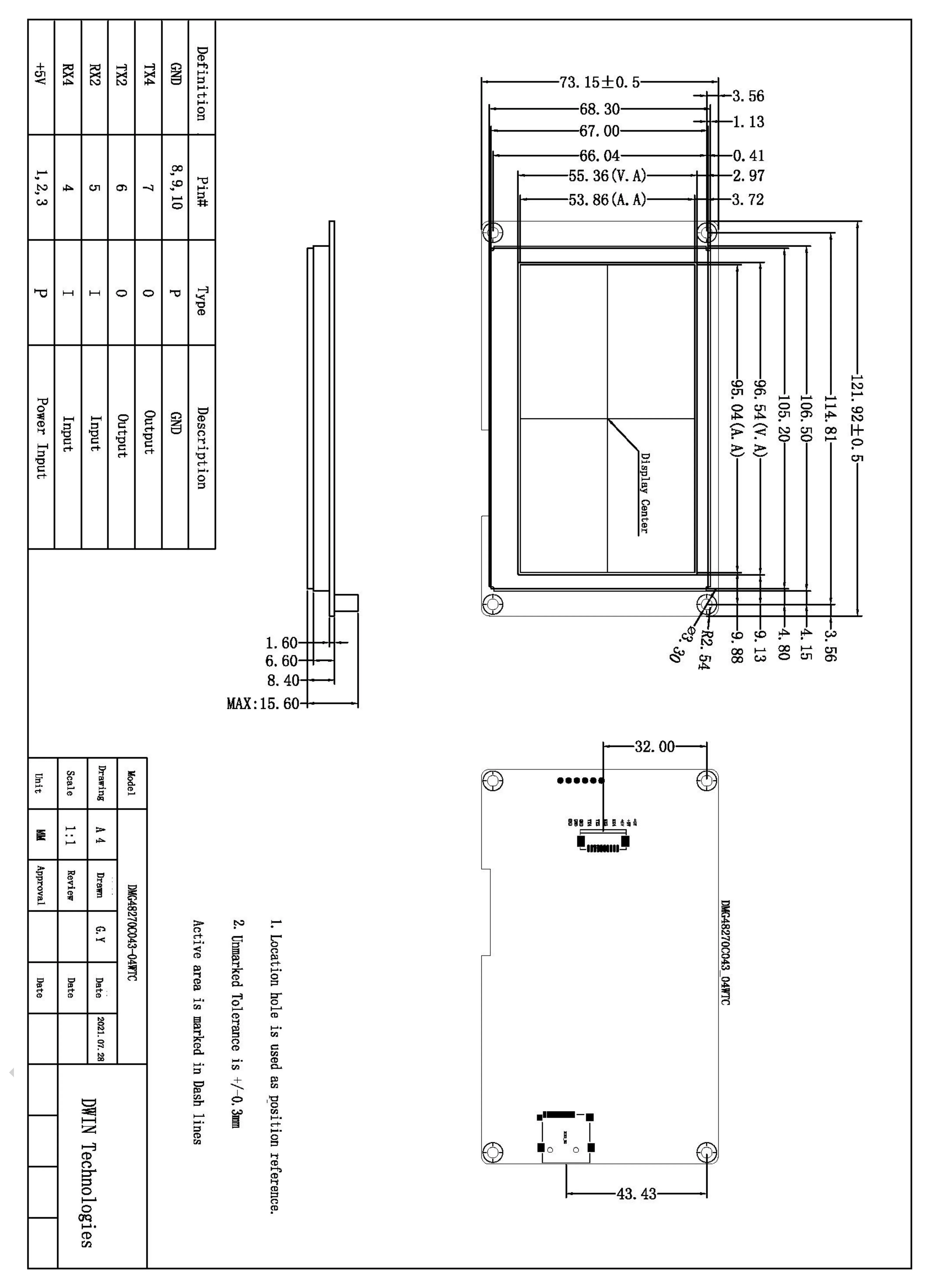

Dimensions

Form Factor

WTC:121.92mm (W)×73.15mm (H)×15.60mm (T)
WTR:121.92mm (W)×73.15mm (H)×15.30mm (T)
WN:121.92mm (W)×73.15mm (H)×13.80mm (T)

Installation Dimensions

Positioning hole: 106.50(+0.3mm)×68.30(+0.3mm)

Net Weight

WTC:125g
WTR:115g
WN:105g
